AFL

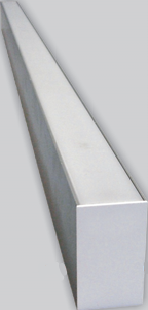

AFL is Architectural linear LED system.
The module system with a stylish design is not only a lighting source but an architectural addition to your room. It provides a stylish alternative to downlights.
With the option to light upwards AFL can highlight ceilings and also provides natural atmosphere where the ceiling is bright.
The smooth high-grade extruded aluminum and diffuser are manufactured at increments of 280mm starting from 290mm up to 1970mm.
Complex figures can be manufactured to meet architectural challenges including angled connections and wall celing contuinity. Standard CRI is 80 but can reach to 95 on request. With color temperature from 2700K to 6000K.
Benefits
• Modern design looks with good aestethics
• Create a functional and relaxing atmosphere
• Customised to your desired length, colour temperature and colour
• Unified Glare Rating is lower than fluorescent tube (UGR<19) by opal optics
• Provides a choice of high system efficacy levels to meet different energy saving targets
• Applications are surface mounted, recessed (also with trim), pendant or wall mounted
• DALI dimming and Emergency mode available
Technical Specification:
|
Model |
Power |
Power |
Useful |
Input |
Dimmensions |
Weight |
Common characteristics |
|
|
AFL 6 |
6 W |
- |
500 Lm |
8 W |
290x40x70 |
1.0 kg |
UGR |
<19 |
|
AFL 12 |
12 W |
- |
1 000 Lm |
14 W |
570x40x70 |
1.5 kg |
Power supply |
230 V AC / PFC>90 |
|
AFL |
18 W |
- |
1 500 Lm |
20 W |
850x40x70 |
2.0 kg |
Working |
- 25 to + 40°C |
|
AFL 18 ID6 |
18 W |
6 W |
2 000 Lm |
27 W |
850x40x70 |
2.1 kg |
Environment |
IP20 |
|
AFL 24 |
24 W |
- |
2 000 Lm |
27 W |
1130x40x70 |
2.5 kg |
LED LM80 |
50 000 h |
|
AFL 24 ID12 |
24 W |
12 W |
2 900 Lm |
40 W |
1130x40x70 |
2.6 kg |
Application |
Indoor |
|
AFL |
30 W |
- |
2 400 Lm |
34 W |
1410x40x70 |
3.0 kg |
Dimmable |
DALI / 1-10V |
|
AFL 30 ID18 |
30 W |
18 W |
3 900 Lm |
54 W |
1410x40x70 |
3.1 kg |
Mounting |
surface / |
|
AFL |
36 W |
- |
2 900 Lm |
40 W |
1690x40x70 |
3.5 kg |
Color |
2 700 - 6 000 K |
|
AFL 36 ID24 |
36 W |
24 W |
4 800 Lm |
68 W |
1690x40x70 |
3.6 kg |
Emergency (optional) |
3 hours / Self |
|
AFL 42 |
42 W |
- |
3 400 Lm |
47 W |
1970x40x70 |
4.0 kg |
Color |
White / Black / |
|
AFL 42 ID30 |
42 W |
30 W |
5 800 Lm |
80 W |
1970x40x70 |
4.1 kg |
Efficiency |
up to 90 Lm/W |
